STEEL WIRE
RUBATEX STEEL WIRE
“POWER OF STEEL…”

In Ruba Wire Facility, we manufacture “STEEL WIRE”, “STRAIGHTENED STEEL WIRE AND FRAME” and “FLATTENED STEEL WIRE” for Mattress, Sofa and Spring Manufacturers.


ruba.png RUBATEX STEEL WIRE  SPECIFICATIONS
DESCRIPTION OF PRODUCT STEEL WIRE  TECHNICAL SPECIFICATIONS STEEL WIRE PACKING SPECIFICATIONS
STEEL WIRE
DIAMETER(mm)

STEEL WIRE
DIAMETER TOLERANCE
(mm ±)

TENSILE OF STRENGHT (N / mm²) Torsion
(TWIST)
min.(pcs.)

Coil Inside

Diameter
( D1 )
mm

Coil Outside

Diameter
( D2 )
mm

Coil Weight
(KG)
Min. Max. min. max.
Steel Wire 1.10mm ± 0,020 1680    1920 25 450 + 10 700 ± 50 100 500
1.20mm 1660    1900 450 + 10 700 ± 50
1.30mm 1640    1890 450 + 10 700 ± 50
1.35mm 1620    1860 450 + 10 700 ± 50
1.40mm 1620    1860 450 + 10 700 ± 50
1.50mm 1600    1840 22 450 + 10 700 ± 50 100 600
1.60mm 1660    2000 450 + 10 700 ± 50
1.70mm 1640    2000 450 + 10 700 ± 50 100 700
1.80mm ±0,025 1650    2000 450 + 10 700 ± 50
1.90mm 1640    2000 450 + 10 700 ± 50 100 800
2.00mm 1620    1900 450 + 10 700 ± 50
2.10mm 1600    1900 450 + 10 700 ± 50
2.20mm 1600    1900 450 + 10 700 ± 50
2.30mm 1580    1850 450 + 10 700 ± 50
2.38mm 1560    1850 450 + 10 700 ± 50
2.40mm 1540    1850 450 + 10 700 ± 50
2.45mm 1520    1850 450 + 10 700 ± 50
2.80mm ±0,030 1400    1600 450 + 10 700 ± 50
3.00mm 1400    1600 450 + 10 700 ± 50
3.10mm 1380    1580 450 + 10 700 ± 50
3.40mm 1350    1560 16 450 + 10 700 ± 50 100 900
3.50mm 1350 1560 450 + 10 700 ± 50
3.90mm 1320 1520 450 + 10 700 ± 50
4.00mm 1320 1520 450 + 10 700 ± 50
4.20mm ±0,035 1310 1500 450 + 10 700 ± 50
4.50mm 1290 1490 12 450 + 10 700 ± 50
4.75mm 1270 1470 450 + 10 700 ± 50
4.88mm 1260 1450 450 + 10 700 ± 50

SPECIAL INFORMATION:

* STEEL WIRES ARE MANUFACTURED ACCORDING TO TS 2500-1 EN 10270-1 STANDARD.
* ALL SPECIFICATIONS LISTED IN ABOVE ARE OUR RUBATEX STEEL WIRE  SPECIFICATIONS.
* APART FROM MANUFACTURING RUBATEX STEEL WIRE ACCORDING TO OUR SPECIFICATIONS, WE HAVE ALSO THE ABILITY OF MANUFACTURING RUBATEX STEEL WIRE ACCORDING TO REQUIRED SPECIFICATIONS BY CUSTOMERS.

PACKING DETAILS:

* STEEL WIRE COILS ARE WITH CORE CARDBOARD.
* STEEL WIRE COILS ARE WRAPPED WITH NAYLON PACKING.
* STEEL WIRE COILS ARE WITH STEEL STRAPPED.
* STEEL WIRE COILS ARE WITH 4 PCS. HOOKS.

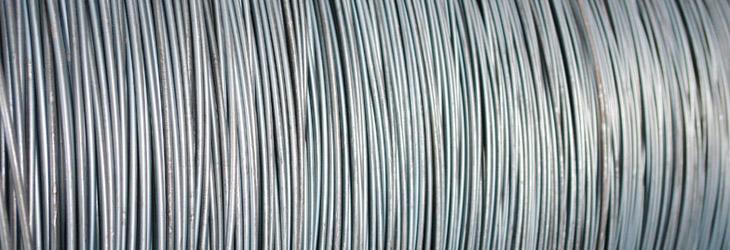

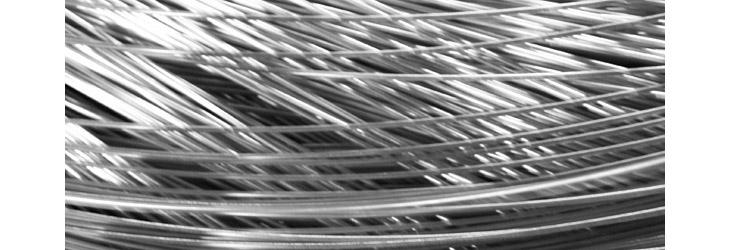

In Ruba Wire Facility, we manufacture a wide array of “Steel Wire” ranging from 1,10 mm to 5,00 mm diameter with different qualities, chemical compositions and tensile strenghts for Mattress and Spring Manufacturers. “Steel Wires” are manufactured according to TS 2500-1 EN 10270-1 STANDARD. “Steel Wires” are coated with phosphate in order to resistant against to corrosion.

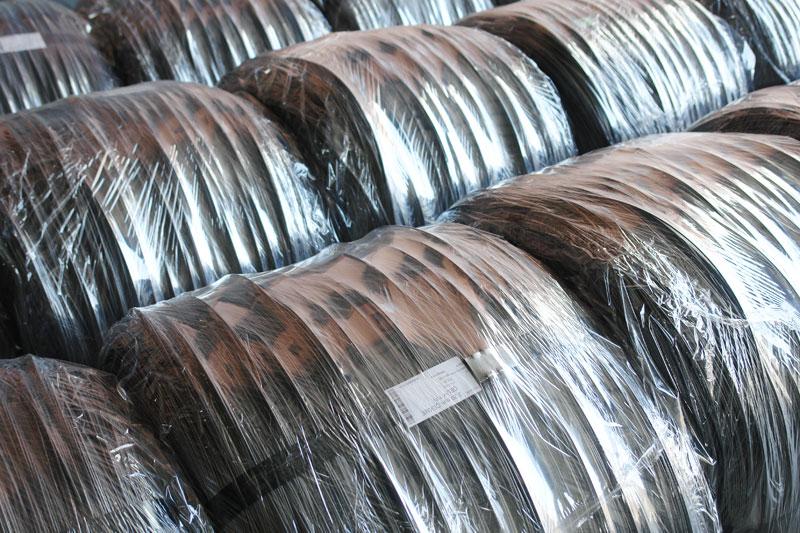

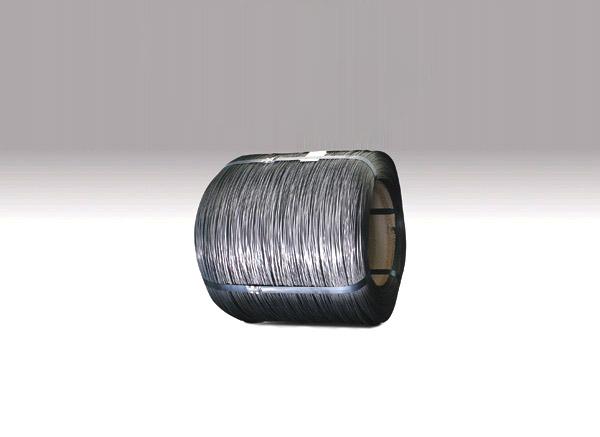

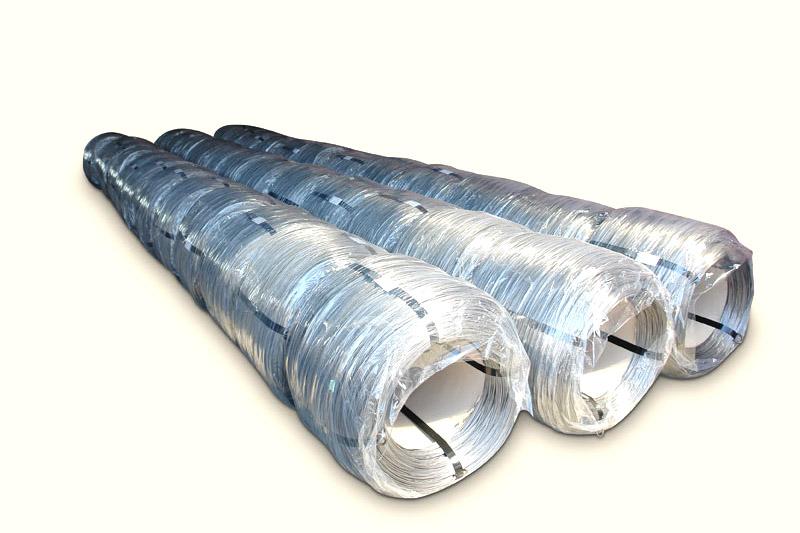

“Steel Wires” are packed as a “Coil” and the coil weights are changed between 100 KG- 900 KG according to customer demands. Steel Wire Coils are with core cardboard, wrapped with nylon packing with steel strapped and with 4 pcs. hooks. We ensure top quality in our “Steel Wires” with quality control points spread to whole production.

3.2.jpg 3.4.jpg RESİM NO 3.3.jpg



RUBATEX STRAIGHTENED STEEL WIRE AND FRAME

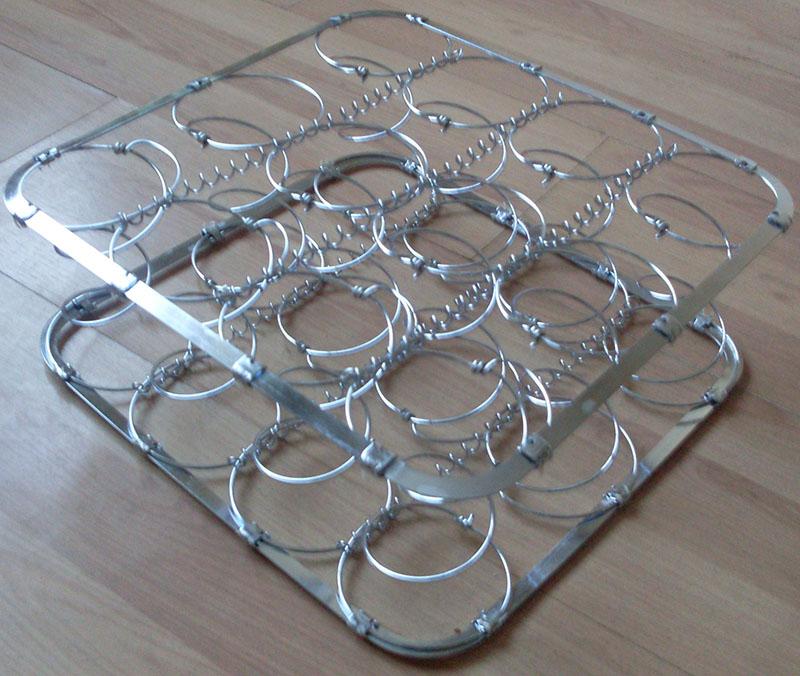

In Ruba Wire Facility, we manufacture the “Straightened Steel Wire” ranging from 3,50 mm to 5,00 mm diameter with different qualities, chemical compositions and tensile strenghts for Mattress and Spring Manufacturers. “Straightened Steel Wires” are manufactured according to TS 2500-1 EN 10270-1 STANDARD. “Straightened Steel Wires” are used for Mattress and Sitting Group. “Straightened Steel Wires” can be manufactured as straightened or as a frame with different dimensions according to customer demands and supplied by piece or kg units in packages ready for shipment.


ruba.png RUBATEX STRAIGHTENED STEEL WIRE AND FRAME SPECIFICATIONS
DESCRIPTION OF PRODUCT STRAIGHTENED STEEL WIRE TECHNICAL SPECIFICATIONS
DIAMETER (mm) WEIGHT (kg/mt)
Straightened Steel Wire 3,50 mm   0.0755
3,60 mm 0.0798
3,70 mm 0.0843
3,80 mm 0.0890
3,90 mm 0.0937
4,00 mm 0.0986
4,10 mm 0.1036
4,20 mm 0.1087
4,30 mm 0.1139
4,40 mm 0.1193
4,50 mm 0.1248
4,60 mm 0.1304
4,70 mm 0.1361
4,88 mm 0.1468

SPECIAL INFORMATION:

* STRAIGHTENED STEEL WIRES ARE MANUFACTURED ACCORDING TO TS 2500-1 EN 10270-1 STANDARD.
* STRAIGHTENED FRAME DIMENSIONS CAN BE MANUFACTURED ACCORDING TO CUSTOMER DEMANDS.
* ALL SPECIFICATIONS LISTED IN ABOVE ARE OUR RUBATEX STRAIGHTENED STEEL WIRE AND FRAME SPECIFICATIONS.
* APART FROM MANUFACTURING  RUBATEX STRAIGHTENED STEEL WIRE AND FRAME ACCORDING TO OUR SPECIFICATIONS, WE HAVE ALSO THE ABILITY OF MANUFACTURING RUBATEX STRAIGHTENED STEEL WIRE AND FRAME ACCORDING TO REQUIRED SPECIFICATIONS BY CUSTOMERS.
RUBATEX FLATTENED STEEL WIRE

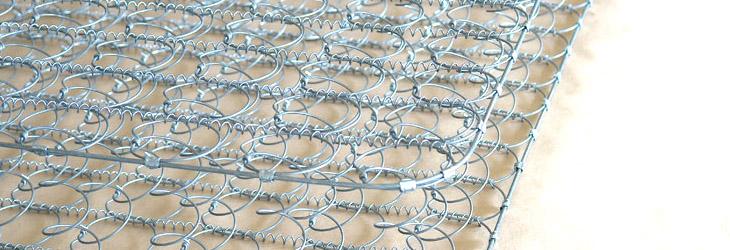

In Ruba Wire Facility, we manufacture the “Flattened Steel Wire” with different  wide range of dimensions and with different qualities, chemical compositions and tensile strenghts for Mattress and Spring Manufacturers. “Flattened Steel Wires” are manufactured according to TS 2500-1 EN 10270-1 STANDARD. “Flattened Steel Wires” are used for Mattress and Sitting Group. “Flattened Steel Wires” are packed as a “Coil” and the coils weights are changed between 100 KG – 300 KG according to customer demands. Flattened Steel Wire Coils are wrapped with nylon packing and with steel strapped.

3.7.jpg RESİM NO 3.6.jpg
ruba.png RUBATEX FLATTENED STEEL WIRE SPECIFICATIONS
DESCRIPTION OF PRODUCT TECHNICAL SPECIFICATIONS PACKING SPECIFICATIONS
STANDARD DIMENSION
(mm)
DIMENSION TOLERANCE
(± mm)
DIMENSION WEIGHT
(gr/mt)
PACKING TYPE COIL WEIGHT
(KG)
PACKING TYPE
THICKNESS
(mm)
WIDHT
(mm)
Min. Max.
Flattened Steel Wire 1,4 mm 8 mm ± 0,015 mm 8,80 gr/mt COIL 100 300 Coıls Are
Wrapped
With Nylon
Packing
1,7 mm 8 mm 10,68 gr/mt
1,8 mm 7 mm 11,30 gr/mt

SPECIAL INFORMATION:

* FLATTENED STEEL WIRES ARE MANUFACTURED ACCORDING TO TS 2500-1 EN 10270-1 STANDARD.
* FLATTENED STEEL WIRE DIMENSIONS CAN BE MANUFACTURED ACCORDING TO CUSTOMER DEMANDS.
* ALL SPECIFICATIONS LISTED IN ABOVE ARE OUR RUBATEX FLATTENED STEEL WIRE SPECIFICATIONS.
* APART FROM MANUFACTURING  RUBATEX FLATTENED STEEL WIRE ACCORDING TO OUR SPECIFICATIONS, WE HAVE ALSO THE ABILITY OF MANUFACTURING  RUBATEX FLATTENED STEEL WIRE ACCORDING TO REQUIRED SPECIFICATIONS BY CUSTOMERS.
