SPRING AND SPRING SYSTEMS
RUBATEX SPRING AND SPRING SYSTEMS
“COMFORT OF SPRING…”

In Ruba Spring Facility, we manufacture “BONNELL SPRING”, “BONNELL SPRING UNIT” and “POCKET SPRING UNIT” for Mattress and Sofa Manufacturers.

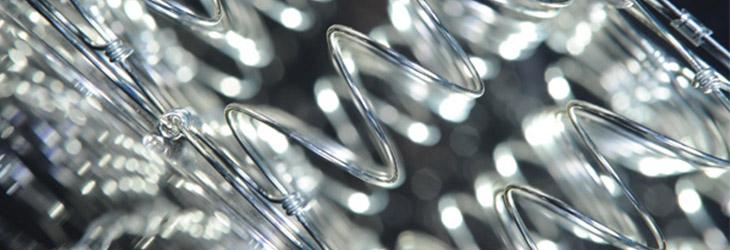

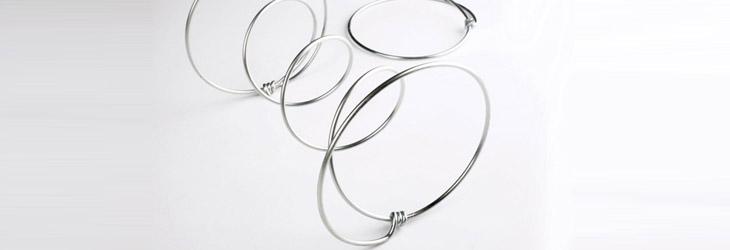

RUBATEX BONNELL SPRING

In Ruba Spring Facility, we manufacture “Bonnell Spring” according to TS-7167 STANDARD for Mattress and Sofa Manufacturers. The Height of “Bonnell Spring” can be manufactured from 75 mm to 170 mm with 4-5-6 spins. Head diameter of “Bonnell Spring” can be manufactured from ø70 mm to ø96 mm with steel wire diameter from 1,90 mm to 2,45 mm. We apply heat treatment on “Bonnell Spring” in order to prevent sagging. Bonnell Springs are packed as 500-1000 KG on “EUR” pallet with dimension 100 cm X 120 cm and the pallets are with nylon overwrap and plastic strapped.




ruba.png RUBATEX BONNELL SPRING  SPECIFICATIONS
DESCRIPTION OF PRODUCT BONNELL SPRING TECHNICAL SPECIFICATIONS BONNELL SPRING PACKING SPECIFICATIONS
HEIGHT
(mm)
TURN
(pcs)
Bonnell Spring
Head Diameter (mm)
Bonnell Spring
Wire Diameter (mm)
PACKING TYPE PALLET DIMENSION
(cm)
Packing Weight
(kg)
Min. Max. Min. Max. Min. Max.
Bonnell Spring 80 mm 4 TURNS 80 mm 96 mm 2.10 mm 2.45 mm PALLET 100x120 cm 500 kg 1000 kg
90 mm
100 mm
110 mm
120 mm 5 TURNS
130 mm
140 mm
150 mm
160 mm 6 TURNS
170 mm
75 mm 4 TURNS 70 mm 76 mm 1.90 mm 2.20 mm
80 mm
90 mm
100 mm
110 mm
120 mm 5 TURNS
130 mm
140 mm
150 mm
160 mm 6 TURNS
170 mm

SPECIAL INFORMATION:

* STEEL WIRES OF BONNELL SPRING ARE MANUFACTURED ACCORDING TO TS 2500-1 EN 10270-1 STANDARD.
* BONNELL SPRINGS ARE MANUFACTURED ACCORDING TO TS-7167 STANDARD.
* ALL SPECIFICATIONS LISTED IN ABOVE ARE OUR RUBATEX BONNELL SPRING  SPECIFICATIONS.
* APART FROM MANUFACTURING  RUBATEX BONNELL SPRING ACCORDING TO OUR SPECIFICATIONS, WE HAVE ALSO THE ABILITY OF MANUFACTURING  RUBATEX BONNELL SPRING  ACCORDING TO REQUIRED SPECIFICATIONS BY CUSTOMERS.

PACKING DETAILS:

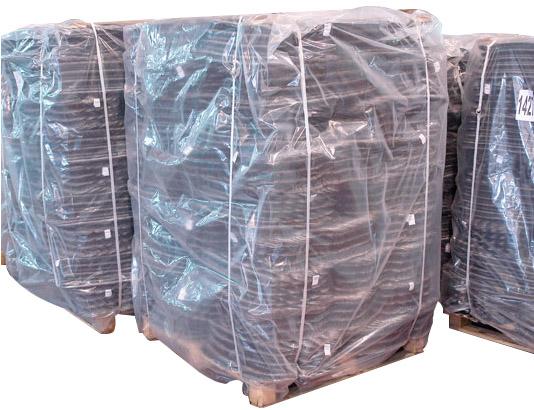

* BONNELL SPRINGS ARE PACKED AS 500-1000 KG ON EUR PALLET AND THE PALLETS ARE WITH NYLON OVERWRAP AND PLASTIC STRAPPED.



4.4.jpg 4.5.jpg RESİM NO 4.3.jpg

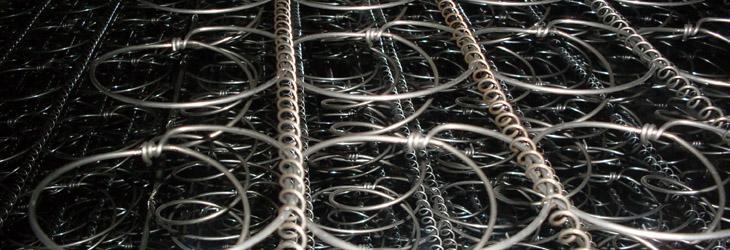

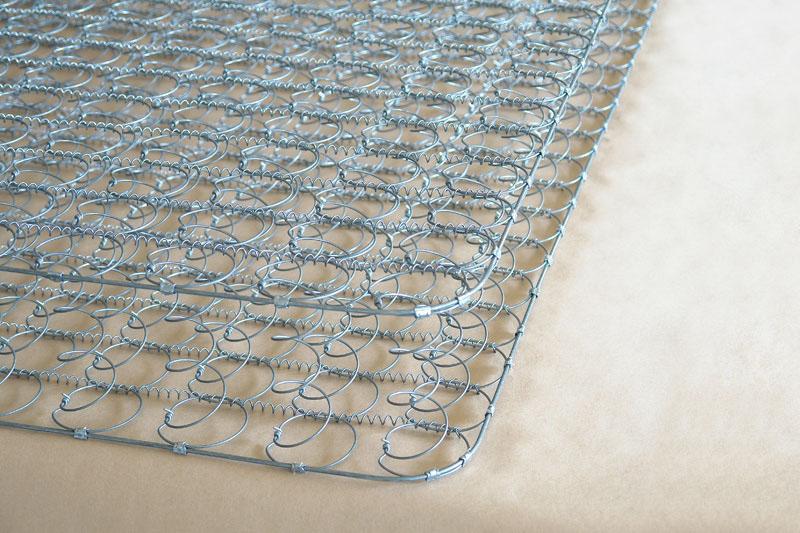

RUBATEX BONNELL SPRING UNIT

In Ruba Spring Facility, we manufacture “Bonnell Spring Unit” with different wide range of dimensions for Mattress and Sofa Manufacturers. Furthermore, Bonnell Spring Unit dimensions can be manufactured according to customer demands.

The height of “Bonnell Spring Unit” can be manufactured from 100 mm to 170 mm with 4-5-6 spins. Head Diameter of “Bonnell Spring Unit” can be manufactured from ø70 mm to ø96 mm with Steel Wire diameter from 1,90 mm to 2,45 mm and helical (spiral) wire diameter 1,40 mm and 1,30 mm.

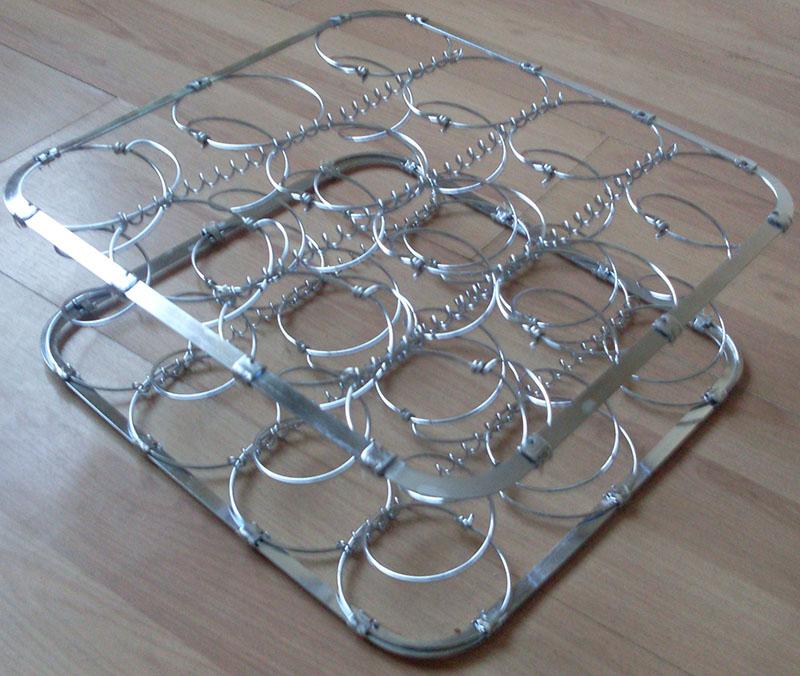

We have the ability of manufacturing different types of “Bonnell Spring Unit” as “ With No Frame”, “With One or Two Side Flattened Frame (1,4x10 mm) “ and “ With One or Two Side Straightened Frame (3,50mm – 4,88mm)”.

4.8.jpg 4.7.jpg

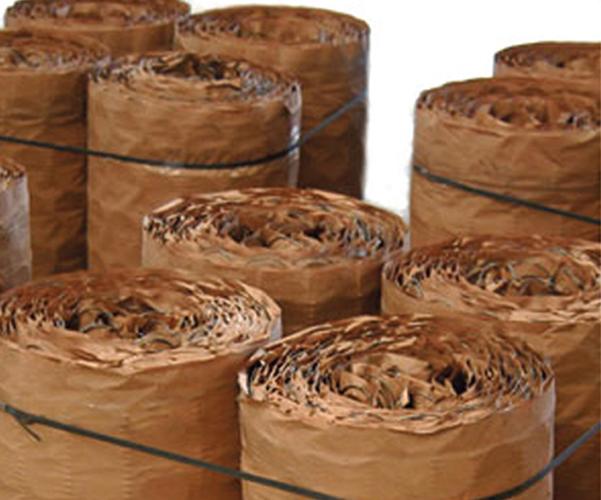

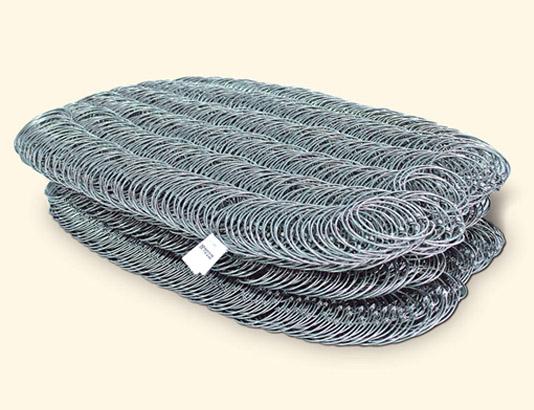

“Bonnell Spring Units” are rollpacked with craft paper as 6,10 and 12 pcs. in each rollpack in order to save on shipping space.




ruba.png RUBATEX BONNELL SPRING UNIT SPECIFICATIONS
DESCRIPTION OF PRODUCT BONNELL SPRING UNIT
TECHNICAL SPECIFICATIONS
BONNELL SPRING UNIT
PACKING SPECIFICATIONS
HEIGHT
(mm)
TURN
(pcs)
Bonnell Spring
Head Diameter
(mm)
Bonnell Spring
Wire Diameter
(mm)
Helical (Spiral)
Wire Diameter
(mm)
Bonnell
Spring Unit
Type
PACKING
TYPE
BONNELL SPRING
UNIT QUANTITY
IN  1 ROLLPACK
(pcs.)
PACKING
DETAILS
Min. Max. Min. Max.
Bonnell Spring Unit 100 mm 4 TURNS 80 mm 96 mm 2,10 mm 2,45 mm 1,40 mm

 - With No Frame
 - With One Side
Flattened Frame
(1,40x10 mm)
 - With Two Side
Flattened Frame
(1,40x10 mm)
 - With One side
Straightened Frame
(3,50 mm - 4,88 mm)
 - With Two side
Straightened Frame
(3,50 mm - 4,88 mm)



ROLLPACK 12 pcs. Bonnell Spring
Units Are
Rollpacked With
Craft Paper
110 mm
120 mm 5 TURNS 10 pcs.
130 mm
140 mm
150 mm
160 mm 6 TURNS 6 pcs.
170 mm
100 mm 4 TURNS 70 mm 76 mm 1,90 mm 2,20 mm 1,30 mm 12 pcs.
110 mm
120 mm 5 TURNS 10 pcs.
130 mm
140 mm
150 mm
160 mm 6 TURNS 6 pcs.
170 mm

SPECIAL INFORMATION:

* BONNELL SPRING UNITS ARE MANUFACTURED ACCORDING TO TS-7167 STANDARD.
* BONNELL SPRING UNIT DIMENSIONS CAN BE MANUFACTURED ACCORDING TO CUSTOMER DEMANDS.
* ALL SPECIFICATIONS LISTED IN ABOVE ARE OUR RUBATEX BONNELL SPRING UNIT SPECIFICATIONS.
* APART FROM MANUFACTURING  RUBATEX BONNELL SPRING UNIT ACCORDING TO OUR SPECIFICATIONS, WE HAVE ALSO THE ABILITY OF MANUFACTURING  RUBATEX BONNELL * SPRING UNIT ACCORDING TO REQUIRED SPECIFICATIONS BY CUSTOMERS.

resim no 4.10.jpg Resim no 4.9.jpg

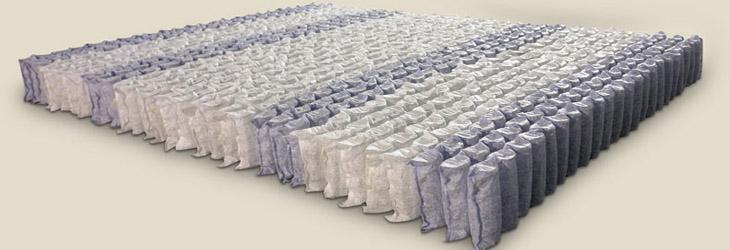

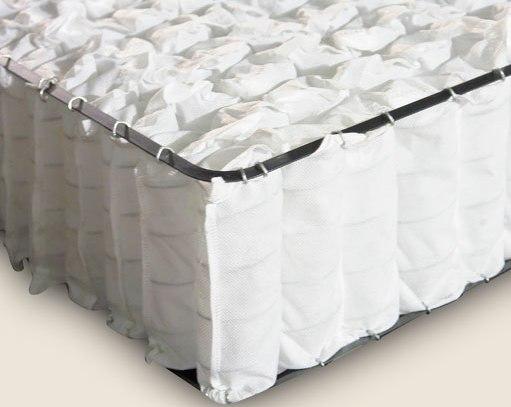

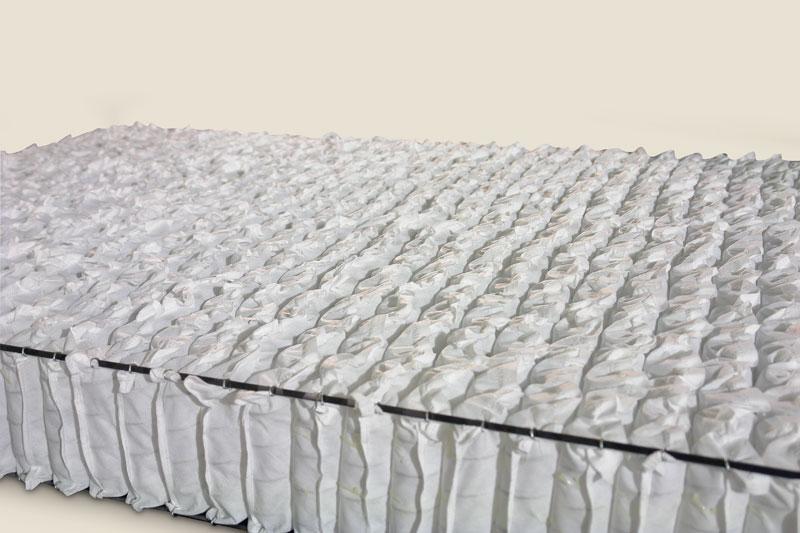

RUBATEX POCKET SPRING UNIT

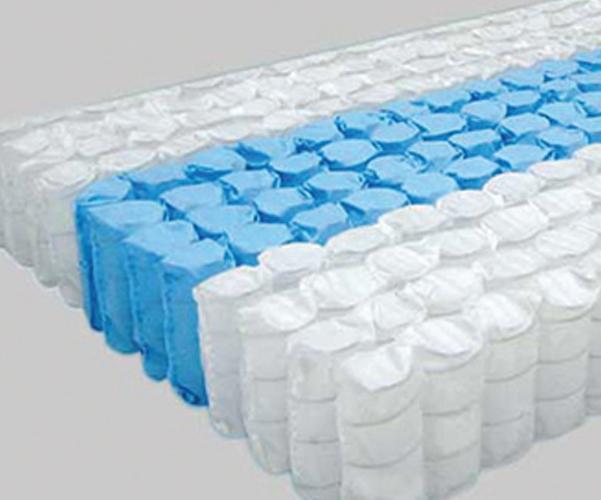

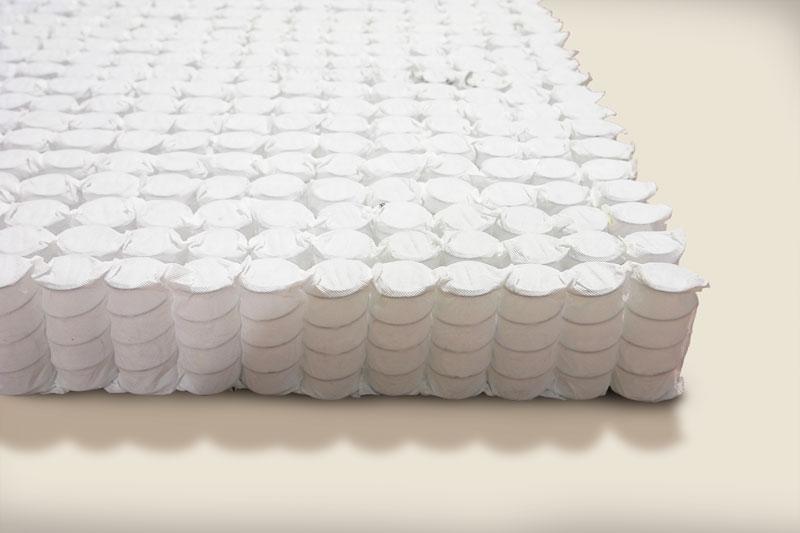

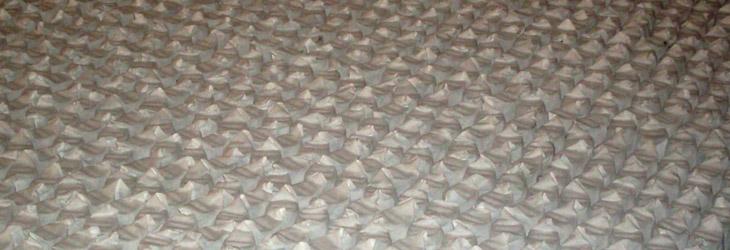

In Ruba Spring Facility, we manufacture “Pocket Spring Unit” with different wide range dimensions for Mattress Manufacturers. Furthermore, Pocket Spring Unit dimensions can be manufactured according to customer demands. The Height of “Pocket Spring” Unit can be manufactured from 100 mm to 180 mm. Diameter of “Pocket Spring Unit” can be manufactured from ø52 mm to ø65 mm with Steel Wire Diameter from 1,50 mm to 2,00 mm. We use 70 gr/m² - 80 gr/m² spun bonded and needle punch fiber in our Pocket Spring Unit production. The non-helical and knot free Pocket Springs are arranged into a Pocket Spring Unit with the help of clips and frame wires. Pocket Spring is avaible in arranged “Pocket Spring Units” glued to each other as well as in independent non-glued form. “Pocket Spring Unit” can be glued in 2 different ways as “Middle Glued” and “Top –Bottom Glued”. We have 4 different types of zone as “No Zone”, “3 Zones”, “5 Zones” and “7 Zones”.


We have the ability of manufacturing different types of “Pocket Spring Unit” as “ With No Frame”, “With One or Two Side Flattened Frame (1,4x10 mm) “ and “ With One or Two Side Straightened Frame (3,50mm – 4,88mm)”.

RESİM NO 4.12.jpg RESİM NO 4.13.jpg

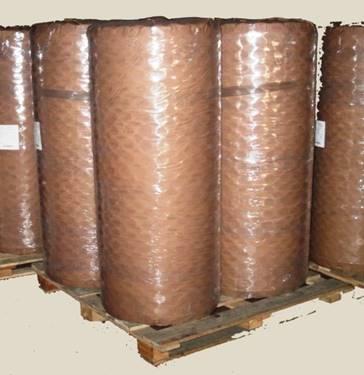

Pocket Spring Units are rollpacked with craft paper as 5 pcs. in each rollpack in order to save on shipping place.

RESİM NO 4.15.jpg RESİM NO 4.14.jpg



ruba.png RUBATEX POCKET SPRING UNIT SPECIFICATIONS
DESCRIPTION OF PRODUCT POCKET SPRING UNIT TECHNICAL SPECIFICATIONS POCKET SPRING UNIT PACKING SPECIFICATIONS
HEIGHT
(mm)
Pocket Spring
Diameter (mm)
Pocket Spring
Wire Diameter (mm)
GLUE TYPE ZONE TYPE Pocket Spring Unit Type PACKING TYPE POCKET SPRING
UNIT QUANTITY IN
1 ROLLPACK
(pcs.)
PACKING DETAILS
Min. Max. Min. Max. Min. Max. TYPE 1 TYPE 2
Pocket Spring Unit 100 mm 180 mm 52 mm 65 mm 1,50 mm 2,00 mm Middle
Glued
Top-Bottom
Glued
No Zone

 - With No Frame
 - With One Side
Flattened Frame
(1,40x10 mm)
 - With Two Side
Flattened Frame
(1,40x10 mm)
 - With One side
Straightened Frame
(3,50 mm - 4,88 mm)
 - With Two side
Straightened Frame
(3,50 mm - 4,88 mm)



ROLLPACK 5 pcs Pocket Spring
Units Are
Rollpacked With
Craft Paper
3 Zones
5 Zones
7 Zones

SPECIAL INFORMATION:

* POCKET SPRING UNIT DIMENSIONS CAN BE MANUFACTURED ACCORDING TO CUSTOMER DEMANDS.
* ALL SPECIFICATIONS LISTED IN ABOVE ARE OUR RUBATEX POCKET SPRING UNIT SPECIFICATIONS.
* APART FROM MANUFACTURING  RUBATEX POCKET SPRING UNIT ACCORDING TO OUR SPECIFICATIONS, WE HAVE ALSO THE ABILITY OF MANUFACTURING  RUBATEX POCKET SPRING UNIT ACCORDING TO REQUIRED SPECIFICATIONS BY CUSTOMERS.
