REPRESENTATIVE

BORDER FRAME STRIP
(FLAT MATTRESS FRAME WIRE)


Ruba acts as sole agent to represent KTS WIRE LTD. / UK, covering sales and marketting of KTS “BORDER FRAME STRIP (FLAT MATTRESS FRAME WIRE) in TURKEY and ALL BALCAN COUNTRIES.

Scaleless Blue Oil Tempered Spring Steel Strips are used for the production of Inner Spring Units for Mattresses.

res 6.jpg

TECHNICAL AND PACKING SPECIFICATIONS
BORDER FRAME STRIP

Scaleless Blue Oil Tempered Spring Steel Strip for the production of inner spring units for mattresses,
upholstery, car seats and for the stabilisation of foam pads.
Generally conforming to BS 7612:1993, DIN 17200/17222 and DIN 1544, ASTM 229/76.


CHEMICAL COMPOSITION   PACKING
Carbon
Silicon
Sulphur
Phosphorus
Manganese
0.30/0.65%
0.10/0.35%
0.035% max
0.035% max
0.60/1.30%

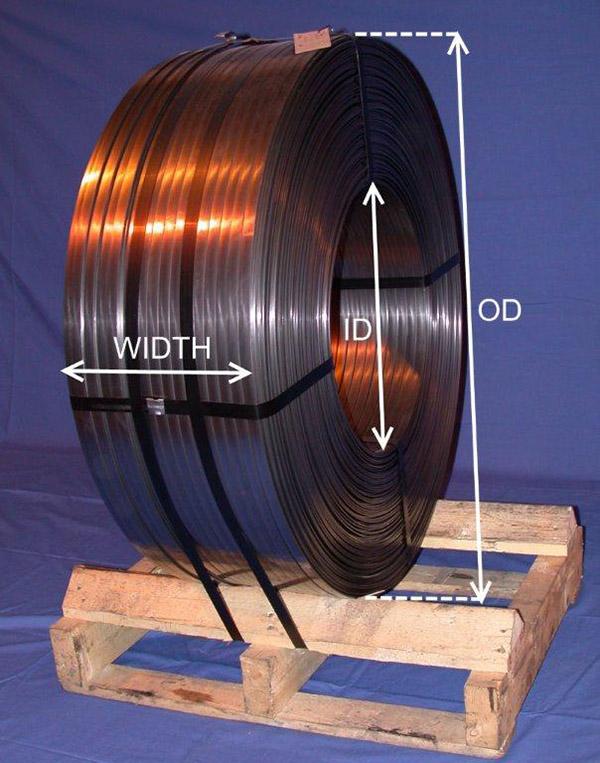

  Traverse Wound Coils
Nominal Dimensions
50/80 kgs 500mm x 80mm x 700mm
600mm x 80mm x 750mm
500 kgs 550mm x 350mm x 800mm


MECHANICAL PROPERTIES   PACKING
Tensile Strength
Hardness Rockwell
Bending Properties
1300-1600 N/mm²
C41-48
90º over 30 mm dia.
  Lightly Oiled for lubricity and corrosion protection.
Unwrapped
Wrapped in wax crepe.
Single coils.
Coils strapped in bundles.


DIMENSIONS in plain rolled edge.
Regular Sizes
 7    x 1.7 mm
 9.5 x 2.0 mm
10   x 1.4 mm
10   x 1.7 mm
6.35 x 1.62 mm (¼”x 16 swg)
6.35 x 1.42 mm (¼”x 17 swg)
Grams/Metre (Approx)
89
146
107
130
78
69


PERMISSIBLE ALTERNATIVES

Physical properties, dimensional tolerances
package weight and size can be adjusted to suit
customers specific requirements


Tolerances Width Thickness  ±0.20mm    ±0.05mm

QUALITY ASSURANCE

KTS WIRE LIMITED is a BSI
Registered Company, to BS EN ISO 9001:2008.
Certificate Number  FM 550252


Non-regular sizes are available on request.

CERTIFICATES OF CONFORMITY

Supplied on request It is company policy to
review technical specifications at regular intervals
to reflect current technical requirements.
The data contained herein constitutes a guide to the
range of product specifications available.
